Seamless 40% Flood, 60% Spot Pattern.

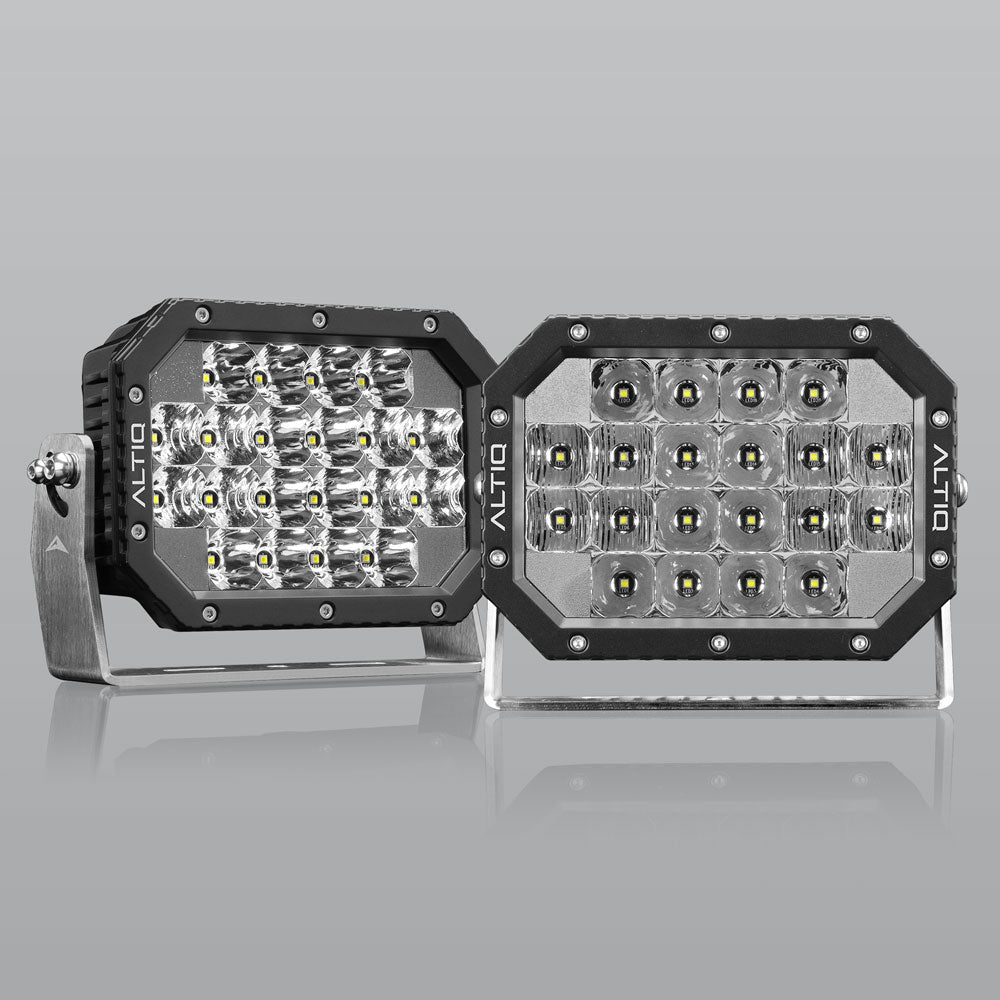

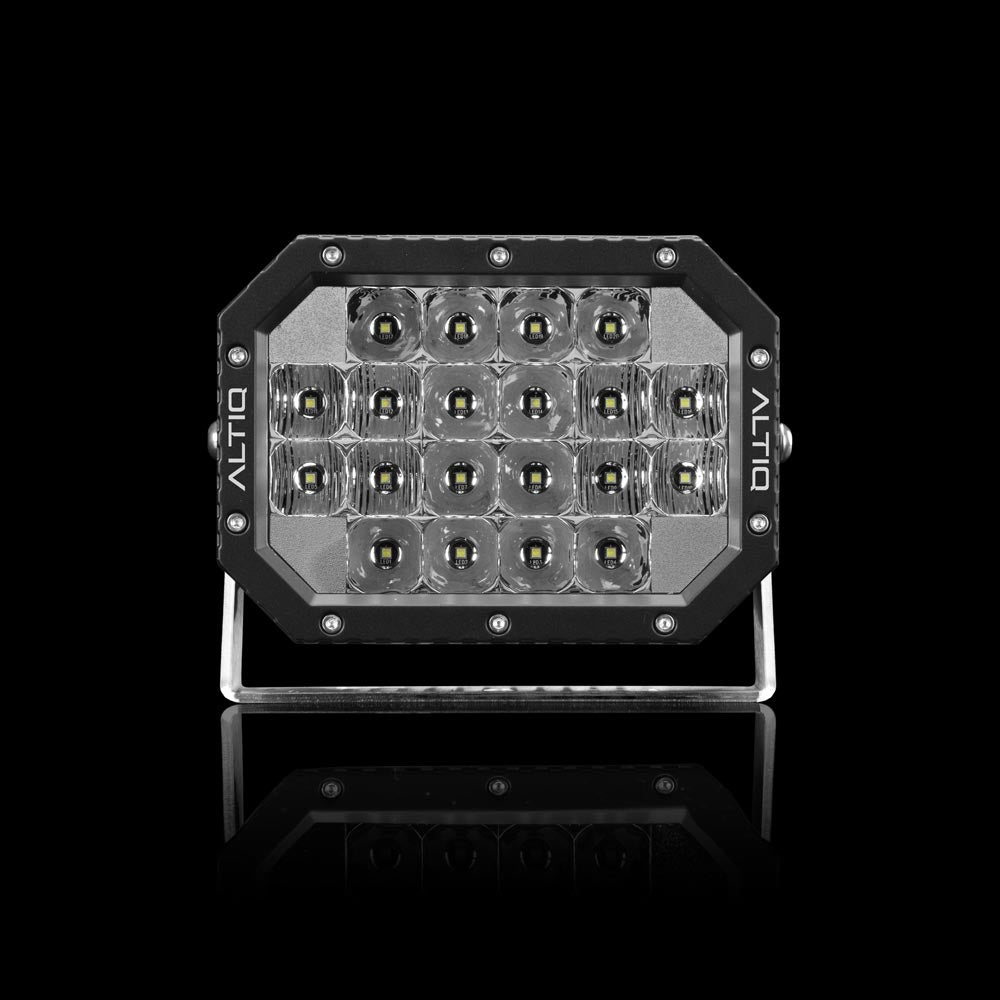

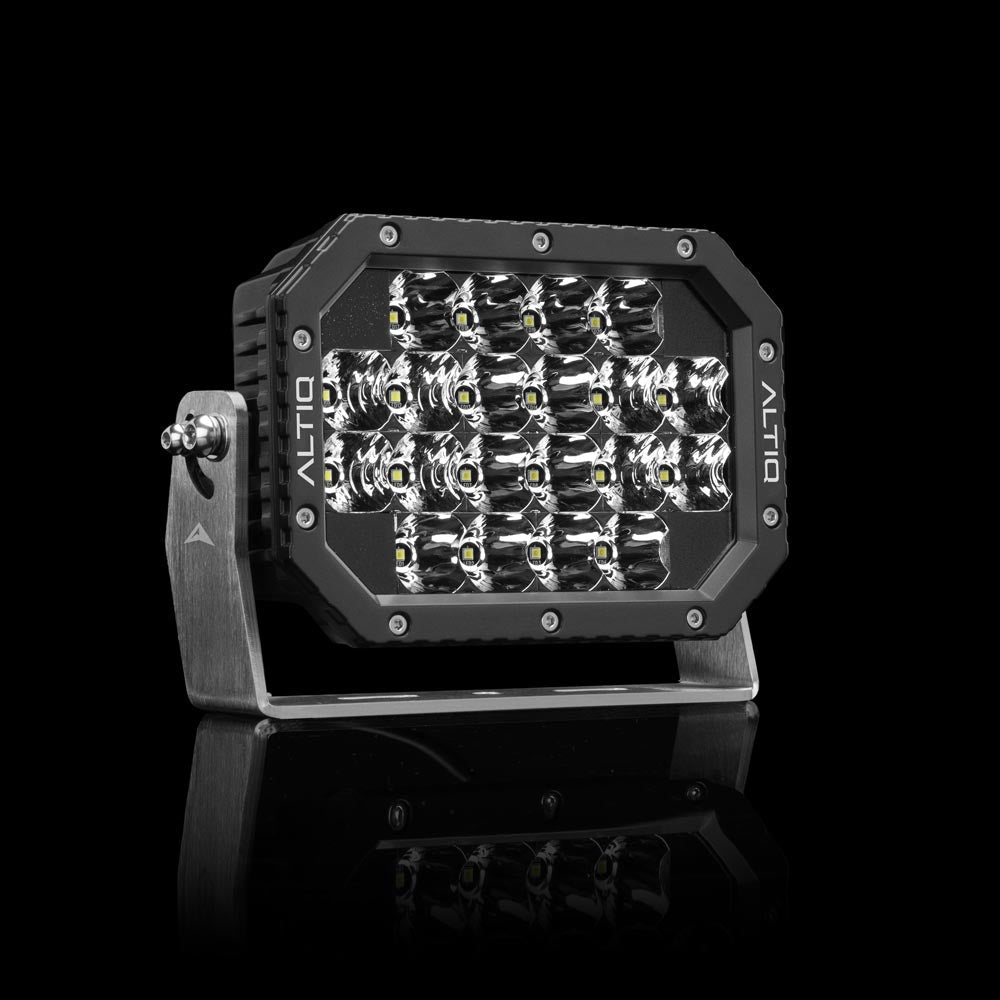

With a super low height profile, this compact Quad V3.0 driving lights offer a comprehensive all-in-one driving light pattern with a whopping 1 lux distance of 600 meters and a wide 120° flood angle. Our most affordable driving lights due to the smaller size, but all the same renowned ALTIQ features to last – built with famous brand components from leading manufacturers; DuPont, General Electric, Vishay, Deutsch Connectors and so on.

All in one combo beam pattern means no light bar is needed, in fact the 120° flood pattern rivals most “flood” orientated light bars and the distance visibility rivals leading HID spot lights.

Offering a rigid and near indestructible build quality, the Quad V3 Driving lights feature our 10 Year warranty. Utilising 316L Stainless steel fasteners and brackets, IP69K waterproof rating and GE Lexan lens with over 220x the impact resistance of glass. These are made to last and keep looking great!

Features

General Electric Lexan lens – Near Indestructible, Doesn’t Yellow.
CISPR 25 Class 3 Certified – Zero Radio/communication interference.
DuPont black paint – Black that stays black – highest chip resistant coating.
Gore-Tex breather valve – 100% pressure equalisation and moisture venting.
5700 Kelvin colour temperature – Daylight equivalent for low eye strain.
IP69K Waterproof – Highest Dust & Waterproof Rating – Pressure wash safe.
10 year warranty – No strings, our driving lights are made to last!
Fast Fit Wiring Harness Included – Easy plug and play installation, includes H4 and HB3 high beam adaptors

Combination Driving Light Pattern

Seamless Spot + wide flood

THE PERFECT RECIPE.

Power is nothing without efficiency, and we argue that at this brightness an efficient output pattern is more important than total light output. We found most combination patterns waste flood light projecting to the sky and immediate ground whilst having a vague centred circular spot. Our system utilises Eight flood elliptical reflectors with vertical incidences to provide a horizontally focused flood and our Twelve tightly pitched spot reflectors provide seamlessly integrated centre spot with horizontal spread.

Wiring Harness Included

Fully Assembled, our Dual Fast Fit Wiring Harness includes:

Battery Terminals, Fuse, Relay, In-Cabin Isolation Switch, and Deutsch Output Terminals
Microprocessor for Negative / Positive Switched Vehicles
H4 + HB3 High Beam Adapters for Halogen High Beam Globes

SPECIFICATIONS:

LENS	GE Lexan
WATERPROOF RATING	IP69K
INPUT	DC 10-30V
FINISH	Black Powder Coat UV Resistant Paint
HOUSING	6063 Heavy-Duty Die Cast Aluminum Housing
BRACKET + BOLTS	Marine Grade Stainless Steel 316L
BREATHER VALVE	Gore Protective Vent
SIZE	Width 187mm, Height 156mm, Depth 77mm
WEIGHT	1.84 KG Each
1 LUX DISTANCE	600m
LUMENS	9600 Each
POWER	5.3A @ 13.6V
WARRANTY	10 Year

Whats included:

2 x Quad V3 6″ LED Driving Lights
2 x Stainless Steel Security Torx Mounting Kits
1 x Fast Fit Dual Wiring Harness – Direct Install with a fully configured harness. Battery Terminals, Fuse, Relay, In Cabin Isolation Switch and H4 + HB3 high beam connections.
Free Delivery

Dimensions:
