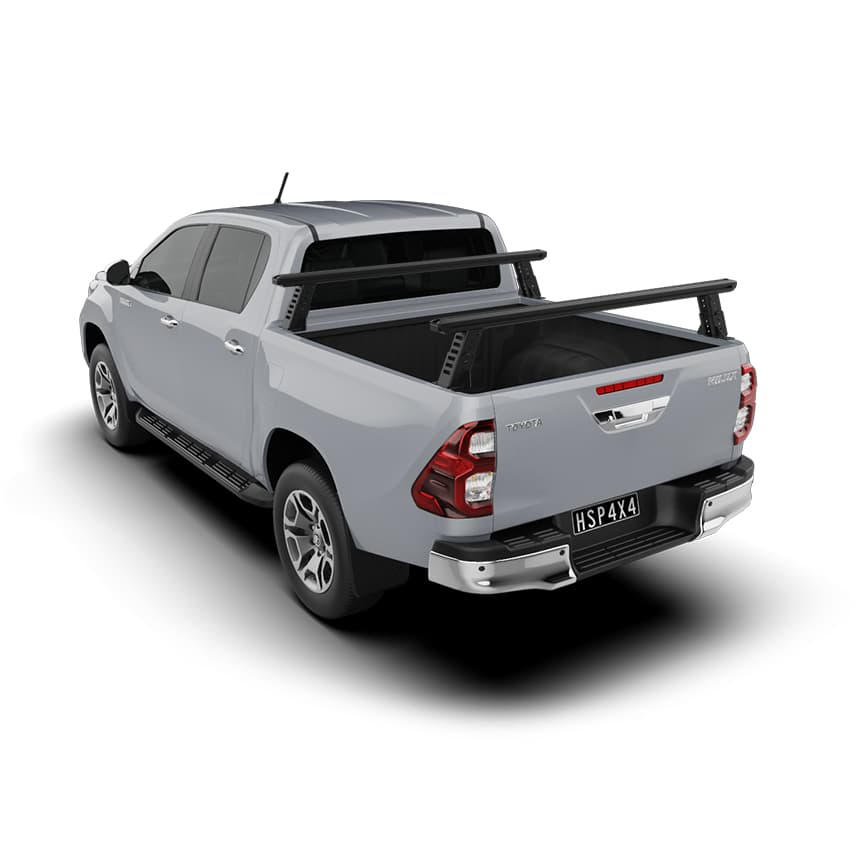

HSP Tub Racks Toyota Hilux SR5/ GR (A-Deck)

$900.00

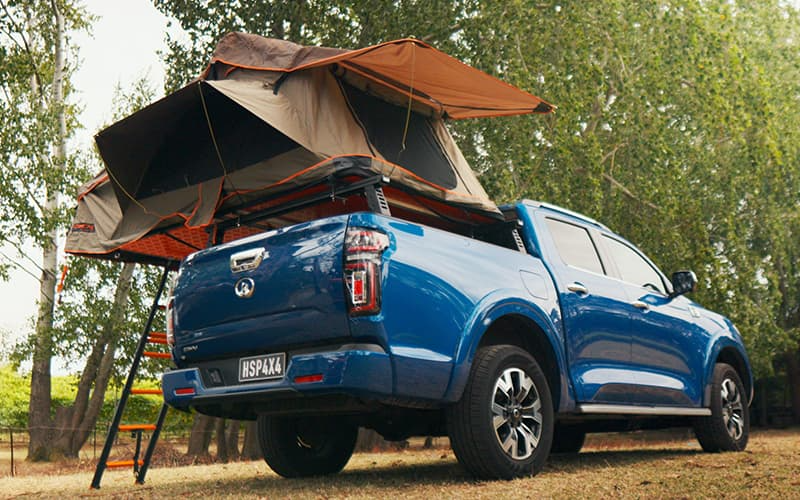

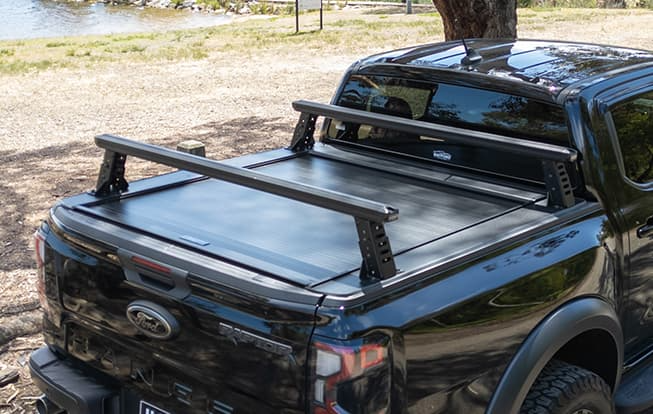

The HSP Load Rack JNR is a fully adjustable Hilux tub rack solution designed to meet your specific needs, offering industry-leading support for up to 150kg dynamic weight and 300kg static weight. Perfect for rooftop tents and platforms, it seamlessly accommodates a wide range of accessories from popular brands like Rhino Rack, Yakima, Front Runner, Thule, and more, ensuring versatility and compatibility for your adventures.

Brand

Variant

Part Type

Clear

Product details

Features

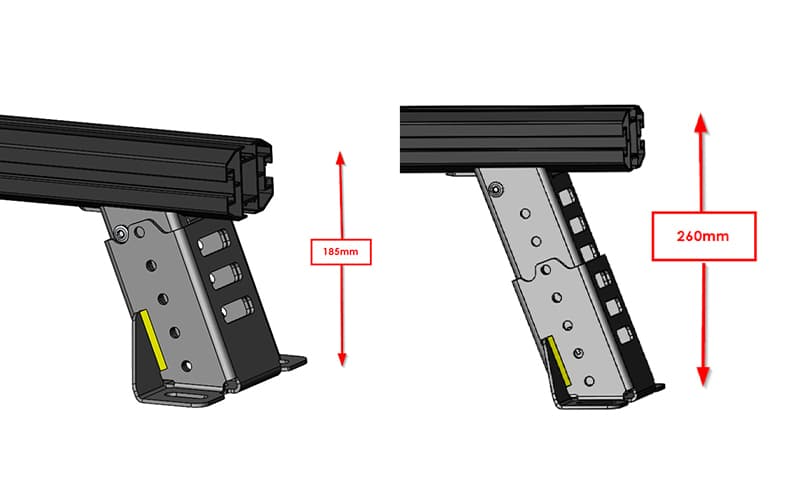

Fully adjustable from 185mm – 260mm
150Kg Dynamic weight capacity
300Kg Static weight capacity

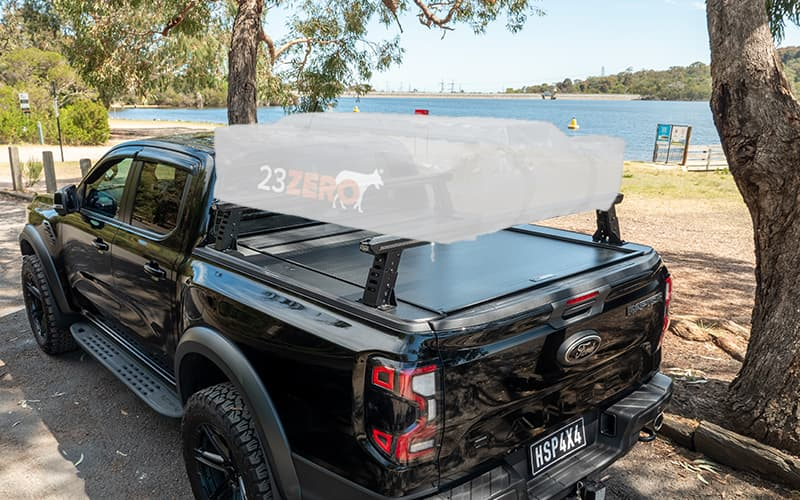

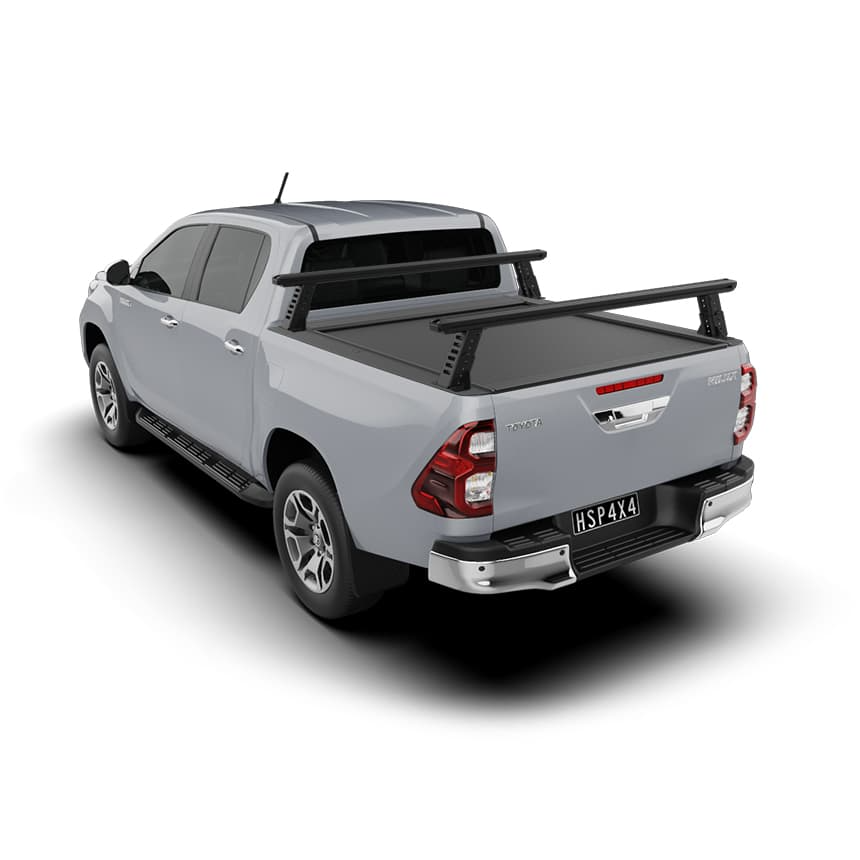

Works seamlessly with Roll R Cover or can be mounted directly on tub

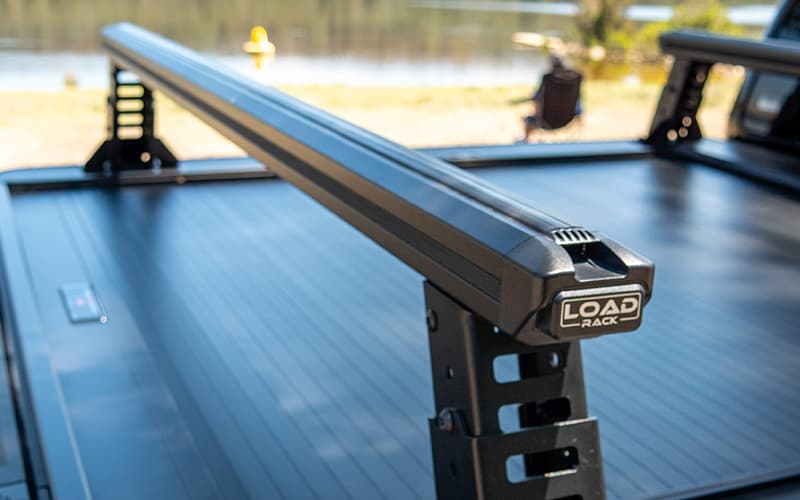

Integrated 8 universal smart channels – suits leading accessories brands like Rhino Rack, Thule and Yakima
Maximum compatible channel nut size: 21.9mm wide and 7mm thick

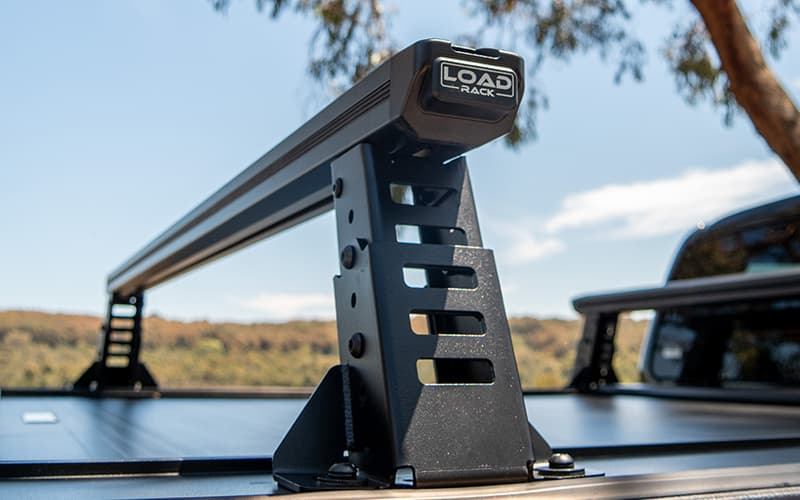

Constructed from light weight alloy with a powder coated finish and steel legs
Decreases GVM compared to traditional tub racks
Proudly Australian: 100% designed & made & sourced in Australia

Compatibility

This Load Rack JNR Kit also suits the below makes and models for NAKED TUB ONLY:

Toyota Hilux: Revo 2015+ SR, SR5, GR & Rugged X

Fitting

Please note the HSP Load Rack JNR is fully adjustable to suit your needs, ensuring low fitting times and is DIY friendly.

500+ authorised fitting centres for professional instalment.
Click the manuals tab for PDF installation instructions.

Warranty

Warranties are very low on HSP products so you can rest assured knowing that you have a quality product. However, in the instance something does go wrong we have some reassurances that if anything goes wrong, we have you covered.

2-year warranty on the unit
Minimal moving parts make replacing any items simple
Australian manufactured item meaning parts are readily available
Australian based customer service team

HSP 3D Hilux Tub Rack Builder

Want to see how your vehicle looks with HSP Accessories? Head to our 3D builder to design your vehicle with HSP products and your factory sports bars. Plus, you can send an enquiry to your local HSP stockist with your complete build set-up!

Available at All Toyota Dealerships

Whether you’re purchasing HSP products as genuine accessories or through your vehicle dealership, HSP is always within reach. Simply ask whether the genuine product is made by HSP, and if it is not, you can request the HSP alternative when buying your vehicle, ensuring you get the high-quality, Australian-made accessories you want.

Technical Specifications

Suits for which Vehicles:
SR5, GR, Workmate, Hi-Rider (SR5/ Workmate), N80
Height Adjustable Range 185mm – 260mm
Complete Kit Has 36 Tie Down Points:
- 5 tie down points on each leg
- 4 universal channels on each top bar
Weight Capacity:
- Complete Kit: 150Kg Dynamic / 300Kg Static

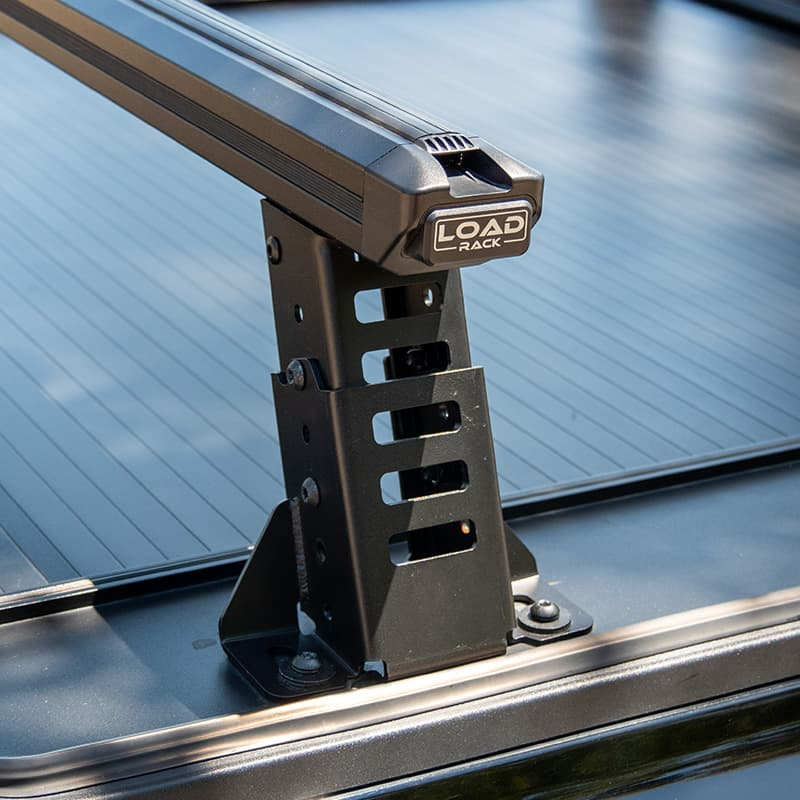

Inner Leg
- Materials Used: 3mm Bluescope GALVABOND steel (Australian-made)

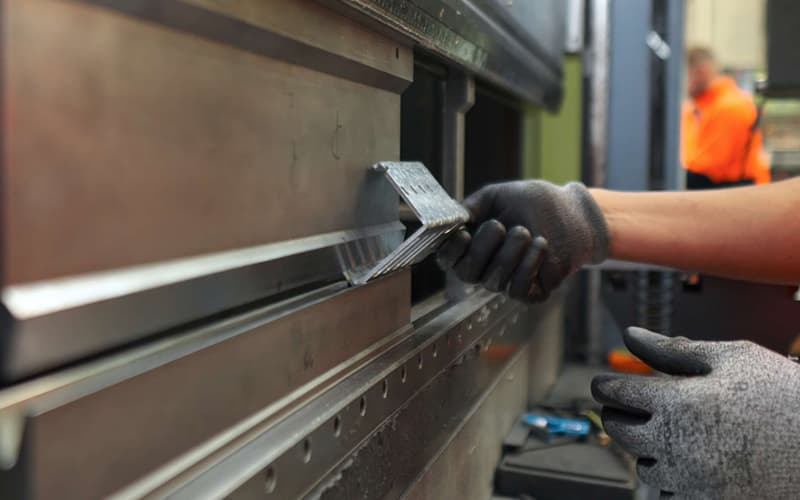

- Manufacturing Processes: Fibre optic laser cutting, CNC press brake folding, hardware insertion (Hemlock Structural Rivet), powder coating (Interpon Textura Black), and packaging.
Outer Leg
- Materials Used: 3mm Bluescope 250 Mpa Mild Steel (Australian-made)
- Manufacturing Processes: Fibre optic laser cutting, CNC press brake folding, laser welding, zinc plating (outsourced to a local plating supplier), hardware insertion (Hemlock Structural Rivets), and powder coating (Interpon Textura Black).

  What is the material & manufacturing process for the Load Rack JNR?

Manuals

Please see below the Load Rack JNR PDF fitting instructions to suit

( KIT 75 ) LJ1 ( TUB ONLY LOAD RACK JNR ) R-f-s (1)
