$4,780.00

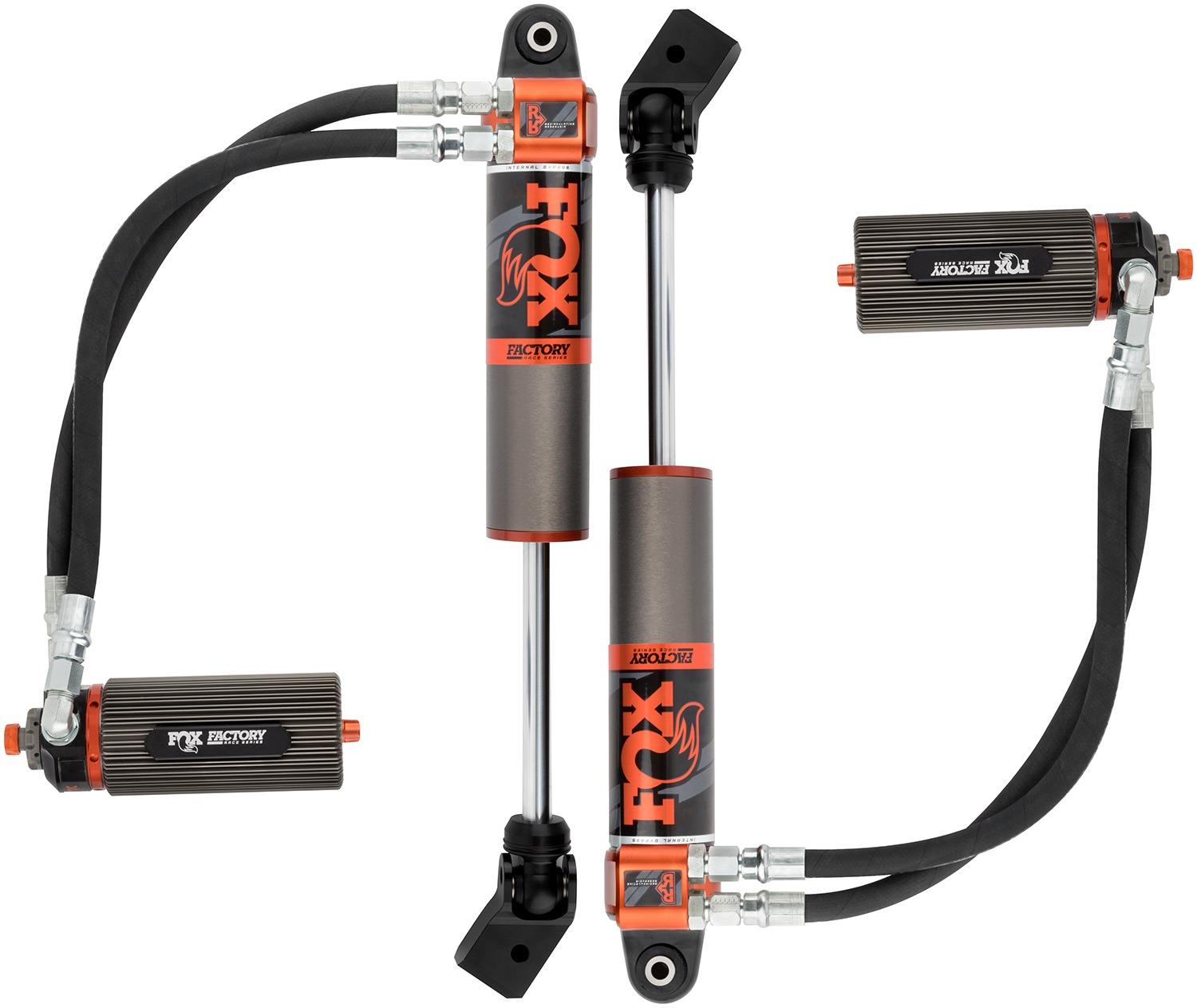

The Factory Race Series 3.0 Internal Bypass shock delivers race-dominating, position-sensitive damping technology and performance in a hassle-free bolt-on kit. Patented, position-sensitive internal bypass technology contains regulated ports that allow fluid to bypass the piston as it moves through the initial travel, and then forces fluid through the piston at the extreme ranges of compression and rebound. This allows for a plush, predictable ride over normal off-road driving conditions with the ability to ramp up damping force to counteract harsh bottom-outs or top-outs that could buck you off the trail.
These hard-anodized, aluminium-bodied shocks are engineered with precision-machined aluminium components and race-bred internal valving. They are designed to bolt onto your 2-3 aftermarket suspension lift kit using OEM shock pivots. Featuring NEW remote Recirculating Reservoir Bridge and hard-anodized.
FEATURES
BODY: 3.0″ impact extruded and CNC machined 6061-T6 hard-anodized aluminium body resists corrosion and weighs less than steel
BODY PLATING: Hard-anodized for a durable finish
RESERVOIR: NEW! Aluminium finned remote reservoir with Recirculating Reservoir Bridge dissipates heat fast
COMPONENTS: Black-anodized, CNC-machined 6061-T6 billet aluminium
SHAFT: 7/8″ hard chrome plated heat-treated alloy steel
PISTON: Race-developed high-flow piston design
VALVING: Application-specific valving to maximize performance
SEALS: Redundant sealing pack system main seal, wiper seal, and scraper seal resist leaks in harsh conditions
BEARINGS: PTFE-lined, heat-treated, alloy steel spherical keep the shock movement quiet and smooth
