13 Expedition 12V

$1,350.00

  • 13,000LB Line Pull Capacity
  • IP67 Ingress Protection
  • Fast 228:1 Gear Ratio
  • Ratchet Mechanical Brake System
  • Wireless Rechargeable Remote

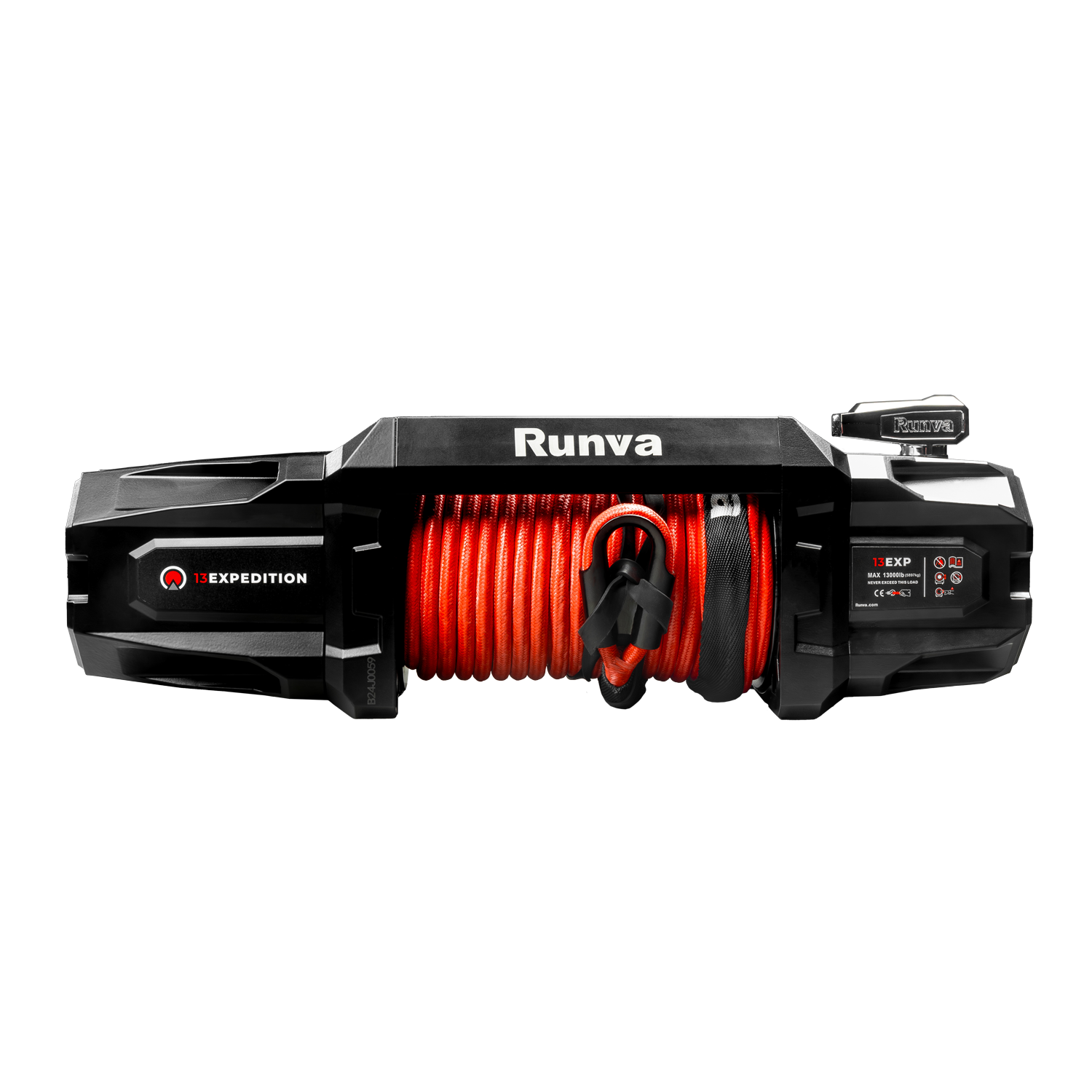

The RUNVA 13EXPEDITION is not just a winch; it’s your ultimate companion for conquering the most challenging off-road terrains. Engineered with an impressive line pull capacity of 13,000 pounds (5,897 kg) and a rapid 228:1 gear ratio, this winch is designed for peak performance in even the most demanding environments. Whether you’re tackling steep inclines, navigating through mud, or facing unforeseen challenges, the 13EXPEDITION provides the strength and reliability you need to tackle any situation. The 13EXPEDITION is designed for versatility, compatible with most bull bars on the market. This seamless integration ensures it enhances your off-road setup without compromising valuable space or adding excessive weight. The robust design of the 13EXPEDITION guarantees that it stands up to the rigors of outdoor use, providing confidence that you are equipped for any recovery operation.

Specifications

RATED LINE PULL13,000LB (5,897KG)
MOTOR (12V) 5.0KW / 6.7HP; (24V) 6.0KW / 8.2HP
GEAR TRAIN FULL STEEL 3 STAGE PLANETARY
GEAR RATIO 228:1
CLUTCH TYPE STAINLESS STEEL ROTARY CLUTCH
CLUTCH HANDLE POSITION GEARBOX CAN BE ROTATED
BRAKE AUTOMATIC RATCHET LOAD HOLDING IN GEARBOX
CABLE TYPE SYNTHETIC ROPE
CABLE SIZE 17/16″ X 82.0′ (11MM X 25M) | 25,250LB RATING
DRUM SIZE 2.48″ X 8.5″ (63MM X 217MM)
MOUNTING BOLT PATTERN 10″ X 4.5″ (254MM x 114.3MM)
OVERALL DIMENSIONS 22.6″ X 6.3″ X 7.5″ (574MM X 160MM X 190MM)
REMOTE CONTROL EXPEDITION WIRELESS REMOTE
BATTERY LEADS 2X 1.8M HEAVY DUTY LEADS
FINISH BLACK POWDER COAT
WARRANTY LIMITED 5 YEAR ELECTRICAL AND LIFETIME MECHANICAL WARRANTY
WEIGHT 31KG

Performance

LINE PULL lb (kg) LINE SPEED ft/min (m/min) MOTOR CURRENT (amp) LAYER OF CABLE RATED LINE PULL lb (kg) TOTAL ROPE ON DRUM ft (m)
12V DC 24V DC 12V DC 24V DC
0 (0) 34.4 (10.5) 36.7 (11.2) 55 40 1 13,000 (5,897) 16.1 (4.9)
4,000 (1,814) 11.8 (3.6) 12.8 (3.9) 185 100 2 10,204 (4,628) 36.4 (11.1)
8,000 (3,629) 6.6 (2.0) 7.9 (3.5) 290 185 3 8,398 (3,809) 60.0 (18.3)
13,000 (5,897) 3.6 (1.1) 4.9 (1.5) 420 245 4 7,135 (3,236) 83.7 (25.5)
