11 Expedition 12V

$1,295.00

  • 11,000LB Line Pull Capacity
  • IP67 Ingress Protection
  • Fast 191:1 Gear Ratio
  • Ratchet Mechanical Brake System
  • Wireless Rechargeable Remote

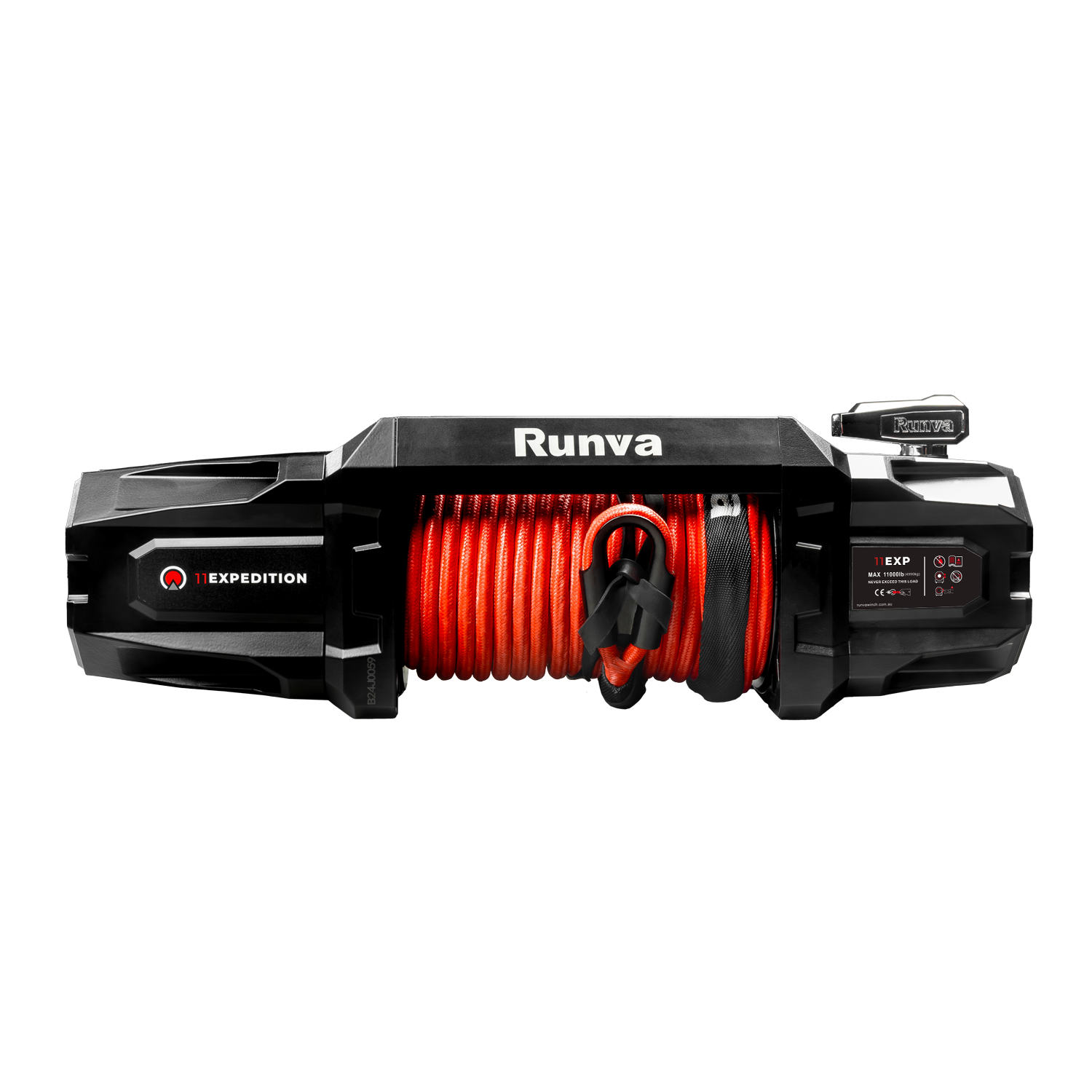

Introducing the new Runva 11EXPEDITION Winch, featuring an array of advanced enhancements packed into a completely reimagined chassis. This winch is engineered to elevate your off-road recovery experience, makingevery adventure smoother and safer. The Runva 11EXPEDITION Winch boasts a sleek, low-profile nesting-style fairlead equipped with a guided hook, ensuring that the recovery process is not only straightforward but also secure. Designed with user safety in mind, this innovative feature minimizes snags
and tangles, allowing you to focus on the task at hand. Additionally, a completely re imagined rechargeable remote control that combines functionality and versatility. It includes a battery level indicator a built-in torch for optimal visibility during low-light recoveries and a wrist strap for ease of convenience.

Specifications

RATED LINE PULL 11,000LB (4,990KG)
MOTOR (12V) 5.0KW / 6.7HP | (24V) 6.0KW / 8.2HP
GEAR TRAIN FULL STEEL 3 STAGE PLANETARY
GEAR RATIO 191:1
CLUTCH TYPE STAINLESS STEEL ROTARY CLUTCH
CLUTCH HANDLE POSITION GEARBOX CAN BE ROTATED
BRAKE AUTOMATIC RATCHET LOAD HOLDING IN GEARBOX
CABLE TYPE SYNTHETIC ROPE
CABLE SIZE 25/64″ X 85′ (10MM X 25M ) | 25,250LB RATING
DRUM SIZE 2.48″ X 8.5″ ( 63MM X 217MM )
MOUNTING BOLT PATTERN 10″ X 4.5″ ( 254MM x 114.3MM ) 4-M10 Bolts
OVERALL DIMENSIONS 22.6″ X 6.3″ X 7.5″ (574MM X 160MM X 190MM)
REMOTE CONTROL EXPEDITION WIRELESS REMOTE
BATTERY LEADS 2X 1.8M HEAVY DUTY LEADS
FINISH BLACK POWDER COAT
WARRANTY LIMITED 5 YEAR ELECTRICAL AND LIFETIME MECHANICAL WARRANTY
WEIGHT 31KG

Performance

LINE PULL lb (kg) LINE SPEED ft/min (m/min) MOTOR CURRENT (amp) LAYER OF CABLE RATED LINE PULL lb (kg) TOTAL ROPE ON DRUM ft (m)
12V DC 24V DC 12V DC 24V DC
0 (0) 36.1 (11.0) 38 (11.6) 55 40 1 11,000 (4,990) 17.4 (5.3)
4,000 (1,814) 11.5 (3.5) 13.1 (4.0) 215 120 2 8,766 (3,976) 39.4 (12.0)
8,000 (3,629) 6.6 (2.0) 6.6 (2.5) 340 200 3 7,286 (3,305) 65.0 (19.8)
11,000 (4,990) 4.0 (1.2) 5.9 (1.8) 440 250 4 6,233 (2,827) 85.3 (26.0)
